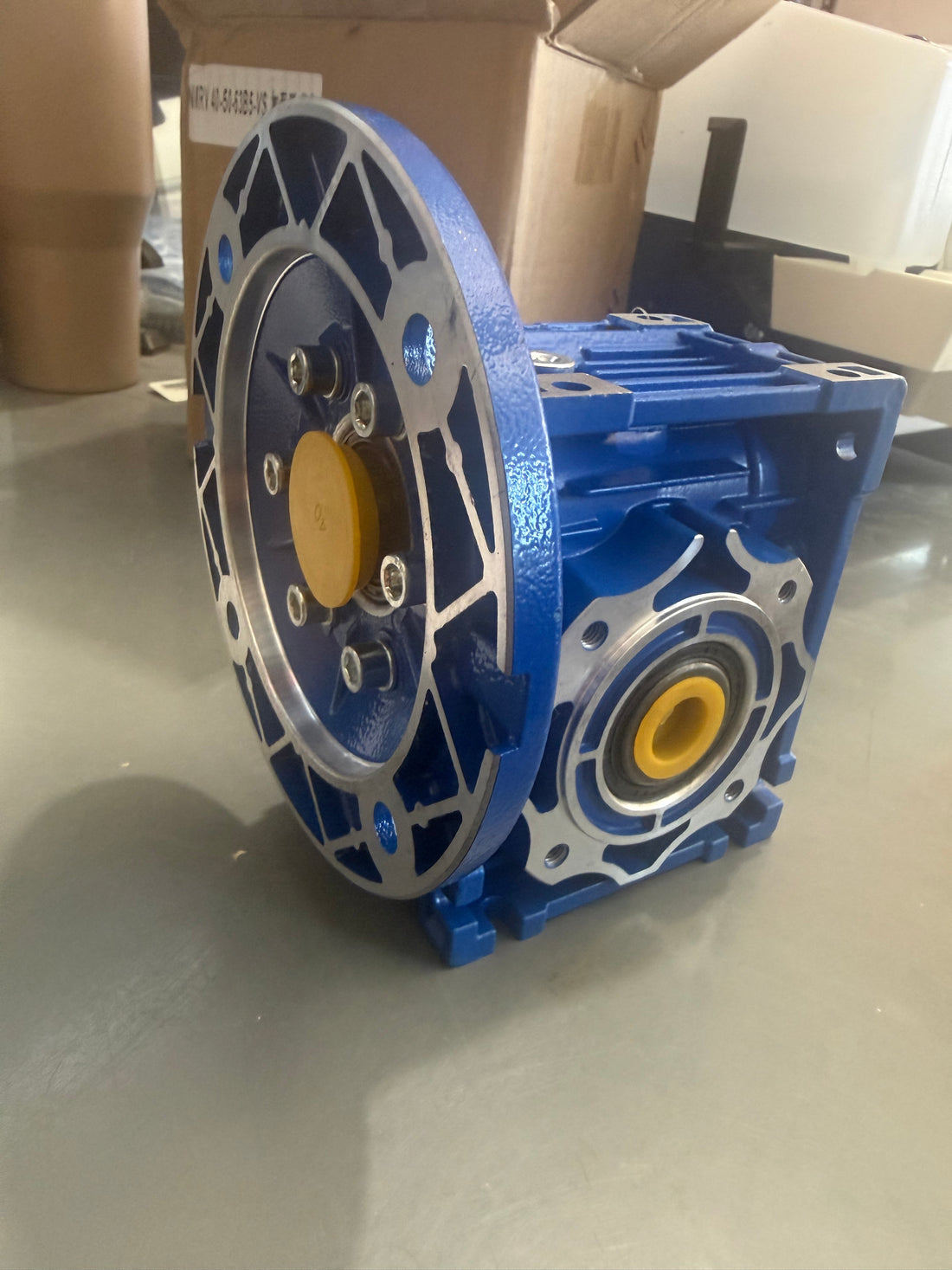

15:1 / Worm Gearbox / NMRVS40 / Worm Gear Speed Reducer / 14mm Input Shaft Diameter
The NMRVS40 is a highly efficient worm gearbox speed reducerĀ . It features a size 40 frame optimized to mount with 86mm x 86mm motors.
The standard physical attributes of the NMRVS40 series include:
- Input Shaft Diameter: 14mm with a keyed input type.
- Output Bore Diameter: 18mm hollow bore output.
- Output Shaft Offset: 90 degrees from the drive shaft.
- Maximum Permissible Torque: 38Nm to 45Nm depending on the chosen configuration.
- Recommended Input Speed: ā¤1500 rpm.
- Materials: Alloy steel gears and a lightweight aluminum body with a Bronze Cu Sn12 Ni2 worm wheel
Fits Hammerhead Industrial model FF-AT-50-X
Regular price
$180.00
