Aluminum Strike Plate for SB-3000 Swing Arm Clicker Press - 19.5" x 23.5"
This plate bolts onto the underside of our Swing Arm Clicker Press heads to provide a cutting surface with high accuracy, but that can also be replaced after being worn.
This particular size fits our 30 Ton Clicker Press; Models: SB-3000 [Previously HH-SA-25-B] as well as Clicker Press heads from many other brands.
Specifications:
- Plate dimensions: 19.5 "W x 23.5" D
- Plate thickness: 0.6"
- Plate Material: Machined aluminum
- Small Bolt hole Diameter: 0.35" (9mm)
- Large Passthrough hole diameter: 0.75" (19mm)

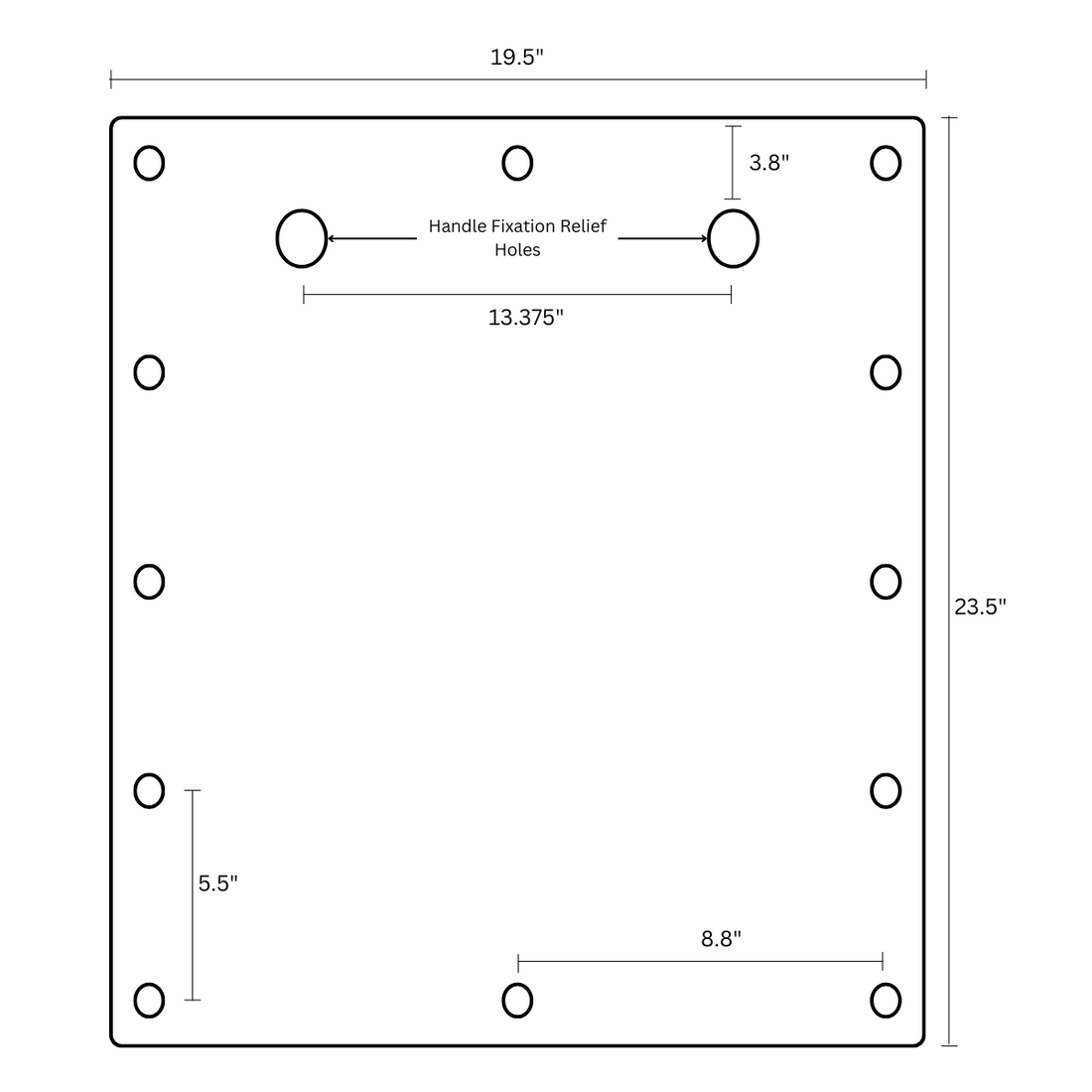

- Bolt Pattern (see drawing):
- 8.8" center-to-center (3-bolt side)
- 5.5" center-to-center (5-bolt side)
- Button pass through holes (2-bolt pattern w/ large holes), 13.375" center-to-center, 3.8" to side wall from plate edge
Handle Holes
Regular price
$199.00
