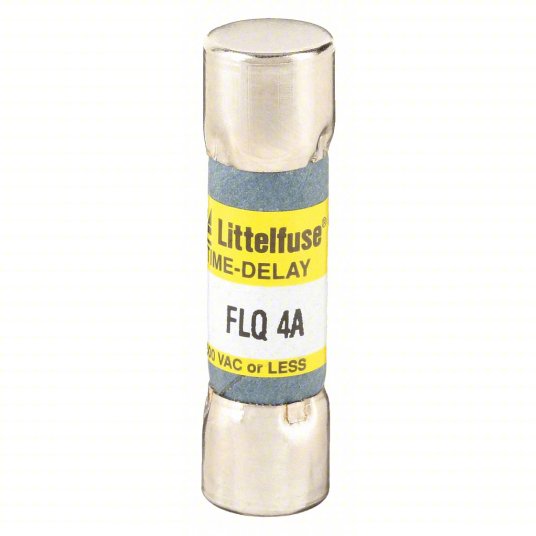

FLQ-4 LITTELFUSE FLQ Series, Midget, Time-Delay, 4 A, 500 V AC, 300 V DC, 13/32 in x 1 1/2 in

FLQ-4 LITTELFUSE FLQ Series, Midget, Time-Delay, 4 A, 500 V AC, 300 V DC, 13/32 in x 1 1/2 in

The L-FSE FLQ004 (commonly cataloged as Littelfuse FLQ004 or FLQ-4) is a 4 Amp, 500V AC industrial midget cartridge fuse featuring a time-delay (slow-blow) opening mechanism. It is primarily engineered  to provide supplemental protection for control power transformers, solenoids, small motors, and circuits experiencing high initial inrush currents..

  • Current Rating: 4 Amps
  • Voltage Ratings: 500 V AC / 300 V DC
  • Interrupting Rating: 10 kA at 500 V AC
  • Fuse Size/Group: Midget / 5AG (13/32 in x 1-1/2 in or 10.3 mm x 38.1 mm)
  • Speed/Characteristics: Time-Delay / Slow-Blow
  • Body Material & Style: Cylindrical fiber/cardboard cartridge body, non-indicating
  • Mounting Type: Pressure-clip fuse holder or fuse block (such as the Littelfuse L600M series)
  • Approvals: UL Listed, CSA Certified, and RoHS Compliant
Regular price

$25.00
PDF Download
