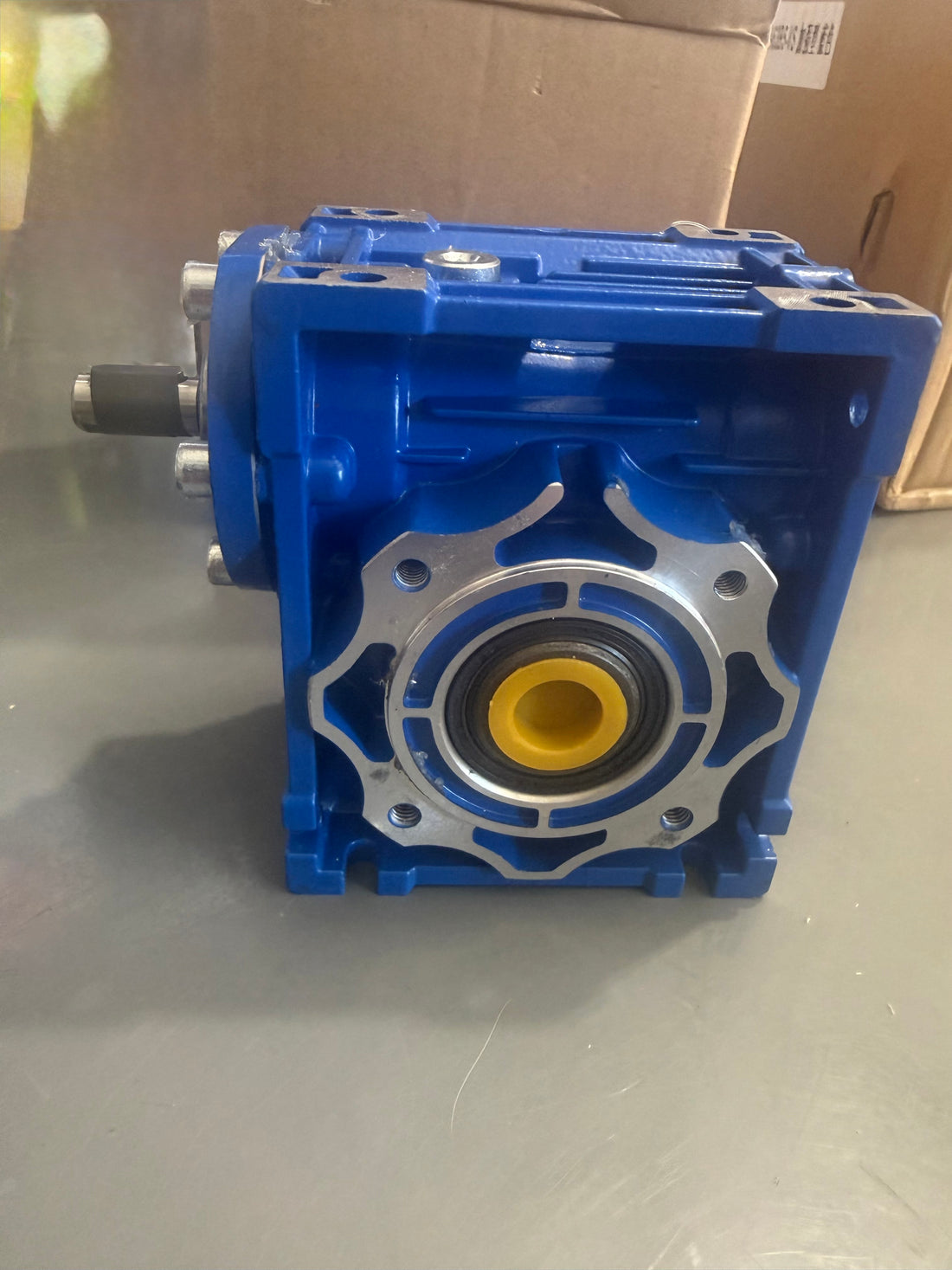

Worm Gearbox / Worm Reducer/ NRV40
Input Shaft Diameter: 14 mm (with keyway)
Output Bore Diameter: 18 mm (hollow bore)
Available Ratios: 5:1 up to 100:1 (common ratios include 10:1, 20:1, 30:1, and 50:1)
Maximum Torque: Around 38 Nm to 45 Nm depending on the exact ratio
Housing Material: Die-cast aluminum alloy (sealed and pre-lubricated with synthetic oil)
Fits Hammerhead Industrial FF-AT-50-X
Regular price
$160.00
