HAMMERHEAD INDUSTRIAL · SWING ARM CLICKER PRESSES

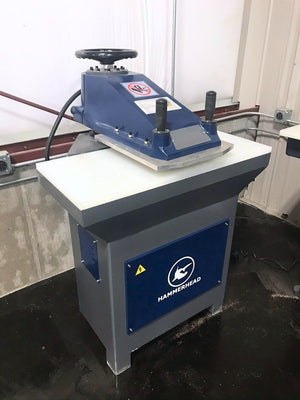

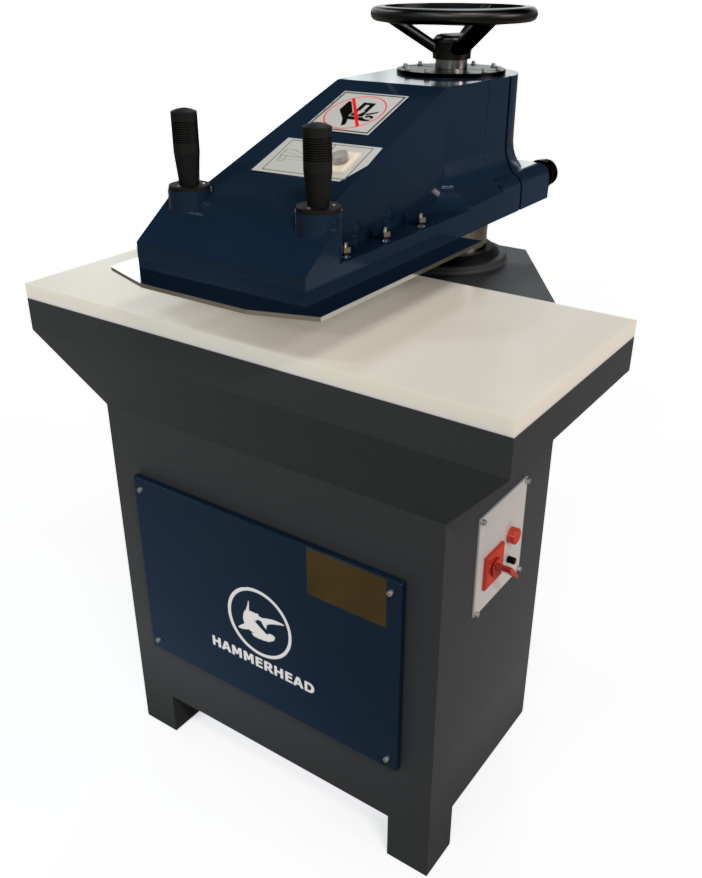

Axis Series
Swing Arm Clicker Press · PCB-Logic · Hydraulic Cut · Spring Return · 10 & 15 Tons
A compact swing arm clicker press built around a single-chamber body that houses the motor and hydraulics together: a lighter footprint, a simpler system and the fewest possible failure points. A handwheel sets the daylight, a timer sets the cutting depth, and a spring-loaded head returns to height after every cut. A favorite for leather goods, footwear and gaskets, and used across aerospace, textiles, composites, packaging and construction materials.
Direct-Operator Press

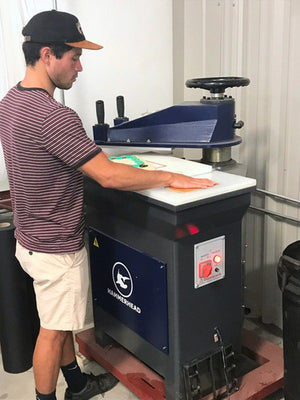

Swing the head into and out of the cutting position by hand, then start the cut by pressing both operation buttons together. Because the operator works at the head, light curtains and caging can't be used; safety is managed through procedures. Need more tonnage? See the Pivot Series.
Tonnage
10 – 15 US Tons
Head Return
Spring return
Power
220V (1PH/3PH) or 480V (3PH)
CONFIGURE TO ORDER
Request a Quote
Every press is quoted to your configuration. Most quotes are returned within 24 hours.
✓ Designed & Supported in the USA
✓ 1-Year Standard Warranty
✓ ~24 hr Quote Response
Applications
Axis Series applications
Used across aerospace, textiles, composites, packaging and construction materials.
Axis or Pivot?
The Axis Series covers 10 and 15 tons with a spring-return head. For 20 to 30 tons, a separate motor chamber and hydraulic head return, see the Pivot Series. Compare every swing arm press on the swing arm clicker presses page.
STEP 1 – 5 · BUILD YOUR QUOTE
Configure Your Axis Series Press
01
Choose Your Base Model
Tonnage
02
Power Package
Hydraulic
[SH]
Servo-Over-Hydraulic
Higher energy efficiency, adjustable cutting speeds and quieter operation.
Not available on this seriesNeed this? See the Pivot Series →
03
Power Configuration
Voltage and phase (60 Hz)
04
Select Your Material Handling
How material reaches the press
05
Add These Options
Accessories & consumables
Accessories & Consumables6
Spare parts package
Select a base model to see matching products.
Confirmed with your quote
Polypropylene pads that fit your cutting table
Select a base model to see matching products.
Polypropylene cutting pad, 1″ thick
$159.00
Polypropylene cutting pad, 1.5″ thick
$239.00
Polypropylene cutting pad, 2″ thick
$319.00 · Sold out
Confirmed with your quote
Nylon pads that fit your cutting table
Select a base model to see matching products.
Nylon cutting pad, 1″ thick
$299.00
Nylon cutting pad, 1.5″ thick
$449.00
Nylon cutting pad, 2″ thick
$599.00
Confirmed with your quote
Steel rule dies
Select a base model to see matching products.
Confirmed with your quote
Hydraulic oil (ISO AW46)
Select a base model to see matching products.
Confirmed with your quote
Anti-fatigue mats
Select a base model to see matching products.
Confirmed with your quote
Material Handling1
REQUEST PRICING
Request a Quote
Tell us about your application and the configuration you picked. Our team will review the details and follow up with a quote.
Email: sales@hammerheadindustrial.com
Phone: (801) 613-7997
Your Configuration
Not yet configured — complete the configurator above
ENGINEERING DATA
Specifications
Standard Axis Series specifications from the current Axis Series catalog. Machine dimensions and weight are confirmed with your quote.
| Model | 10 Ton | 15 Ton |
|---|---|---|
| Cutting Force | 10 US Tons | 15 US Tons |
| Head Width | 13.75 in | 14.63 in |
| Cutting Table Size (W × D) | 31.5 in × 15.75 in | 35.5 in × 16.25 in |
| Daylight | 4.75 in | |
| Base Unit Stroke Speed | ~5 in/sec | |
| Stroke Adjustment | 1.5 in – 4.75 in | |
| Hydraulic Fitting Type(s) | JIC / BSPP / BSPT | |
| Hydraulic Oil Capacity (ISO AW46 or equivalent) | ~7 gal | ~8 gal |
| Power Supply Options (60 Hz) | 1PH 220V · 3PH 220V · 3PH 480V | |
| Motor Power | 1.1 kW (1.5 hp) | |
| Base Unit Min. Circuit Rating (3PH, 220V) | 20 A | |
| Base Unit Dimensions (W × D × H) | Confirmed with your quote | |
| Weight (Base Unit) | Confirmed with your quote | |
Specifications and performance metrics are based on aggregated test results. Actual specs and performance may vary based on machine configuration, material properties and other factors. For higher tonnages and more automation configurations, see the Pivot Series.
Machine Features
Standard Features
- Daylight adjustment wheel (macro-adjustment)
- Timer-based cutting depth (micro-adjustment)
- Compression counter
- Hour counter
- Single directional valve; spring-loaded head returns to height after each cut
- JIC hydraulic fittings
- Two handle/button operation with anti-tiedown functionality
- Thermal overload protection
- Replaceable cutting pad (1″ polypropylene)
Features
- Compact Machine Body
- Manual Daylight Adjuster
- Time-controlled Micro Adjuster
- Compression Counter
- Hour Counter
- Easy-swing Head Movement
Safety Features
- Two-hand Tiedown Controls
- Safety Rated Disconnects
- Protective Earth (PE) Connection
- Thermal Overload Protection
- Cable Management
COMPLIANCE & QUALITY
Standards
How the Axis Series is designed and built. Tell us which standards your shop has to meet.
USA-based Design & Quality Control
Engineering and quality control are handled by our team in the USA.
ISO 4401 Hydraulic Valves
Standard-pattern hydraulic valves for straightforward service.
NFPA Standard Wiring
Wiring follows NFPA practice for easier troubleshooting.
USA-standard Fittings
JIC hydraulic fittings make repairs and part replacements simpler.
Easy-to-source Brands
Common components from brands you can source locally.
Durable Wear Components
Wear parts are built for long service in production.
Single-Chamber Note
Motor and hydraulics share one chamber. If your safety standards require them separated, or you need UL 508(a) panels or third-party safety evaluations, see the Pivot Series.
AFTER YOU BUY
Service & Warranty
Traveling Technicians
Our technicians travel to your facility for service and troubleshooting.
Virtual Diagnostics & Support
Remote troubleshooting helps reduce downtime.
Full Schematics & Manuals
Full electrical and hydraulic schematics and comprehensive user manuals.
On-site Commissioning & Training
We can commission the press and train your operators on site.
PM Service Plans
Preventive maintenance plans keep the press running.
Parts Stocked in the USA
Swing arm wear parts are stocked in the USA.
Easy Online Parts Ordering
Order parts online, with express shipment options.
