HAMMERHEAD INDUSTRIAL · TRAVELING HEAD PRESSES
Trak Series
Gantry-Style Traveling Head Press · Relay-Logic · Down-Stroking · Single-Cylinder · Up to 50 Tons

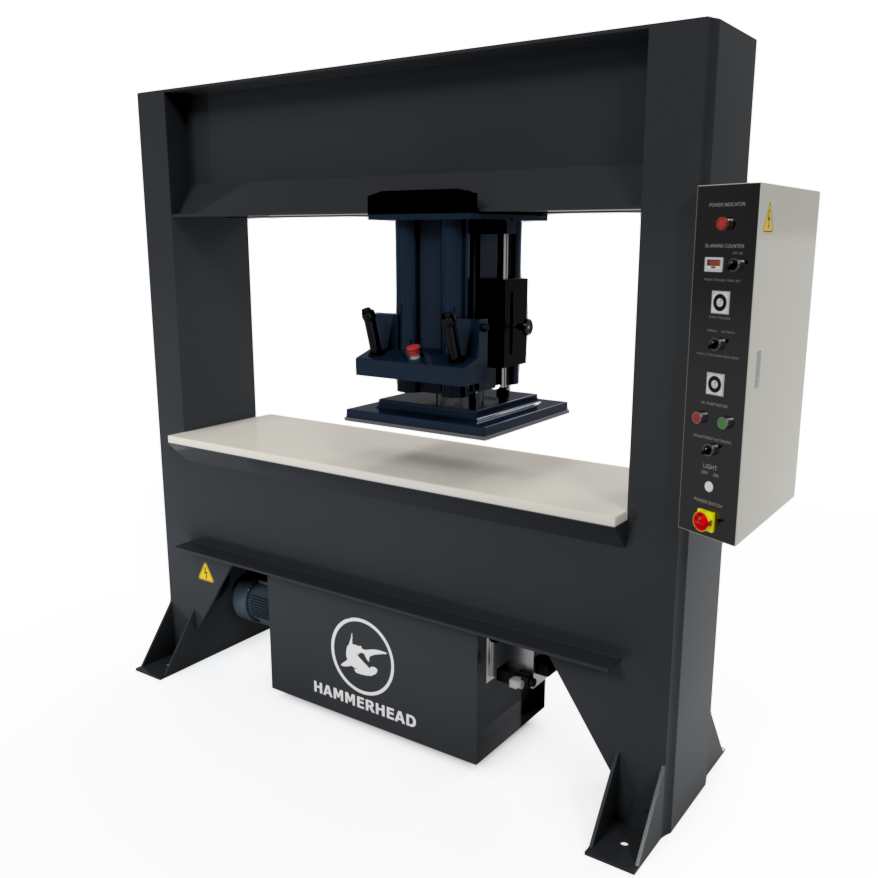

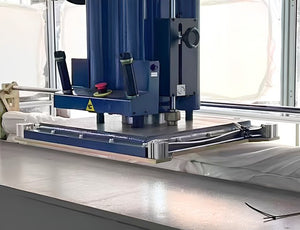

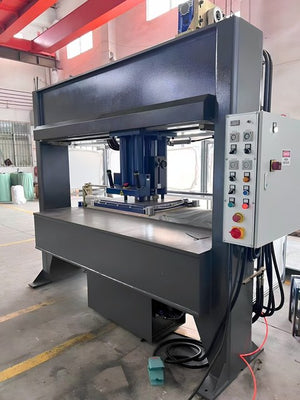

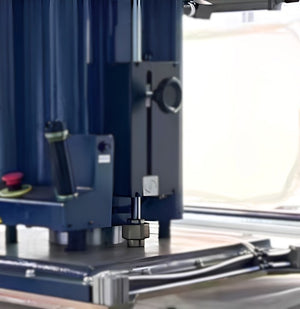

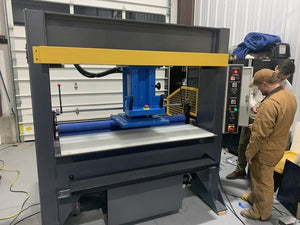

A gantry-style traveling head press for through-cutting. The hydraulic cylinder is built into the traveling head. Three tonnage ratings (25, 35 and 50 US tons), material widths up to 78″ and custom head sizes up to 36″ × 36″.

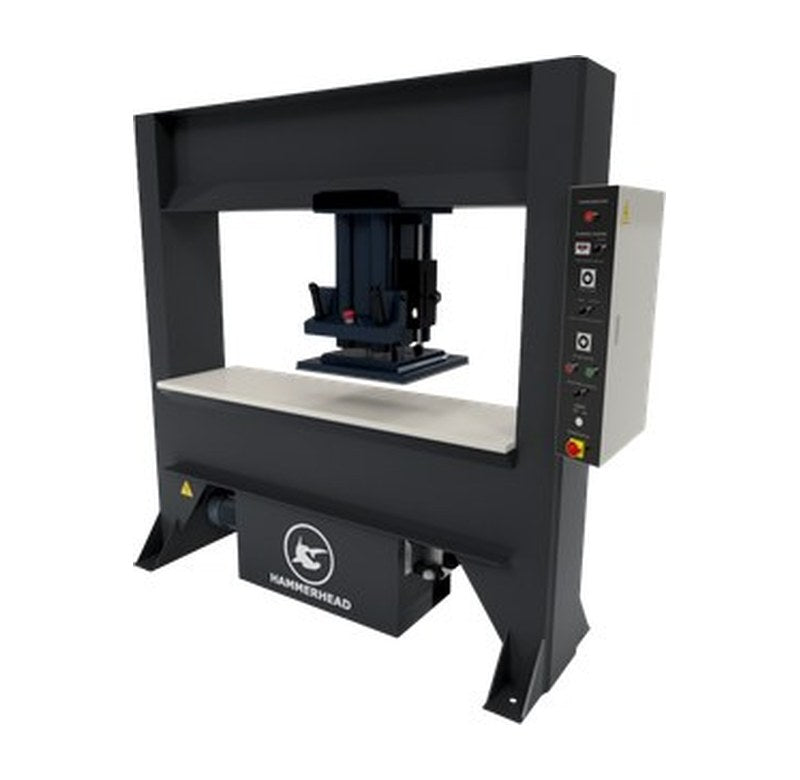

Direct-Operator Press

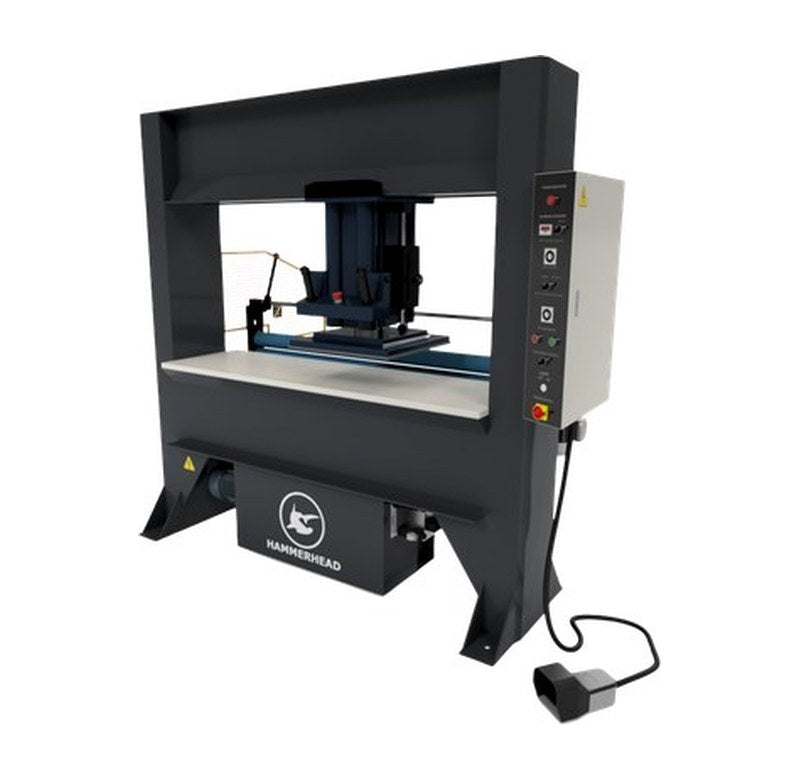

Manual twin-handle controls with anti-tiedown. Optional pinch rollers advance material with a foot pedal. For more automation, see the Pryma and Flex Series.
Tonnage
25 – 50 US Tons
Material Width
63″ (custom up to 78″)
Power
3PH 220V or 3PH 480V
CONFIGURE TO ORDER
Request a Quote
Every press is quoted to your configuration. Most quotes are returned within 24 hours.
✓ Designed & Supported in the USA
✓ 1-Year Standard Warranty
✓ ~24 hr Quote Response
STEP 1 – 5 · BUILD YOUR QUOTE
Configure Your Trak Series Press
01
Choose Your Base Model
Tonnage
02
Power Package
Hydraulic, servo-over-hydraulic or servo-electric
03
Power Configuration
Voltage and phase (60 Hz)
04
Select Your Material Handling
How material reaches the press
05
Add These Options
Tooling, cleanroom and accessories
Tooling & Die Setup2
Cleanroom & Stainless2
Accessories & Consumables12
REQUEST PRICING
Request a Quote
Tell us about your application and the configuration you picked. Our team will review the details and follow up with a quote.
Email: sales@hammerheadindustrial.com
Phone: (801) 613-7997
Your Configuration
Not yet configured — complete the configurator above
ENGINEERING DATA
Specifications
Standard Trak Series specifications from the current Trak Series catalog. Machine dimensions and weight are confirmed with your quote.
| Model | 25 Ton | 35 Ton | 50 Ton | Custom |
|---|---|---|---|---|
| Cutting Force | 25 US Tons | 35 US Tons | 50 US Tons | Up to 50 Tons |
| Max Material Width | 63 in | 63 in | 63 in | Up to 78 in |
| Cutting Head Size (W × D) | 19.5 in × 19.5 in | 19.5 in × 19.5 in | 19.5 in × 19.5 in | Up to 36 in × 36 in |
| Stroke Adjustment | 1 in – 7 in | 1 in – 7 in | 1 in – 7 in | Up to 1 in – 10 in |
| Base Unit Stroke Speed | ~13 in/s | ~13 in/s | ~10 in/s | — |
| Hydraulic Fitting Type(s) | JIC / BSPP / BSPT | |||
| Hydraulic Oil Capacity (ISO AW46 or equivalent) | ~25 gal | ~35 gal | ~35 gal | — |
| Power Supply Options (60 Hz) | 3PH 220V · 3PH 480V | |||
| Motor Power [H] | 2.2 kW (3 hp) | 3 kW (4 hp) | 4 kW (5.4 hp) | — |
| Motor Power [SH] | 5.5 kW (7.4 hp) | 7.5 kW (10 hp) | 11 kW (14.75 hp) | — |
| Motor Power [SE] | 11 kW (14.75 hp) | 13.5 kW (18 hp) | 18.8 kW (25.2 hp) | — |
| Base Unit Min. Circuit Rating (3PH, 220V) [H / SH / SE] | 50 A / 60 A / 80 A | 60 A / 80 A / 100 A | 80 A / 100 A / 120 A | — |
| Base Unit Min. Circuit Rating (3PH, 480V) [H / SH / SE] | 30 A / 40 A / 60 A | 40 A / 60 A / 80 A | 60 A / 80 A / 100 A | — |
| Cutting Accuracy (Repeatability / Deflection / Parallelism) | ±0.01 in / ±0.02 in / ±0.01 | ±0.01 in / ±0.02 in / ±0.01 | ±0.01 in / ±0.02 in / ±0.01 | — |
| Base Unit Dimensions (W × D × H) | Confirmed with your quote | |||
| Weight (Base Unit) | Confirmed with your quote | |||
Specifications and performance metrics are based on aggregated test results. Actual specs and performance may vary based on machine configuration, material properties and other factors. Custom values are confirmed with your quote. For higher tonnages and more automation configurations, see the Pryma Series.
Machine Features
Features
- Premium Electrical Enclosures
- Pneumatic Die Clamping
- Intuitive Control Panel
- High-quality Gear Reducers

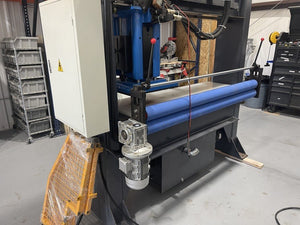

- Quick-release Pinch Rollers
- High-durability Limit Switches
- Mechanical Drop-encoder
- Detent Micro-adjuster
- Spin-on Oil Filters
- Ball Screw-driven Travel
Safety Features
- Two-hand Tiedown Controls
- Track Guarding
- Hard-guarding
- Plexiglass Guarding / Access
- Safety Badging & Stickering
- Emergency-stop Buttons
- Physical Lockout / Tagout
- Generic Safety Relay
- Safety Rated Disconnects
- Protective Earth (PE) Connection
- Caging & Perimeter Safety
COMPLIANCE & QUALITY
Standards
How the Trak Series is designed and built. Tell us which standards your shop has to meet.
USA-based Design & Quality Control
Engineering and quality control are handled by our team in the USA.
5S & Lean Process Controls
The production team works to 5S and lean process controls.
ISO 4401 Hydraulic Valves
Standard-pattern hydraulic valves for straightforward service.
NFPA Standard Wiring
Wiring follows NFPA practice for easier troubleshooting.
USA-standard Fittings
JIC hydraulic fittings make repairs and part replacements simpler.
Easy-to-source Brands
Common components from brands you can source locally.
Durable Wear Components
Wear parts are built for long service in production.
AFTER YOU BUY
Service & Warranty
Traveling Technicians
Our technicians travel to your facility for service and troubleshooting.
Virtual Diagnostics & Support
Remote troubleshooting helps reduce downtime.
Full Schematics & Manuals
Full electrical and hydraulic schematics and comprehensive user manuals.
On-site Commissioning & Training
We can commission the press and train your operators on site.
PM Service Plans
Preventive maintenance plans keep the press running.
Parts Stocked in the USA
Wear and service parts are stocked in the USA.
Easy Online Parts Ordering
Order parts online.
Express Shipment Options
Express shipping is available on parts orders.
