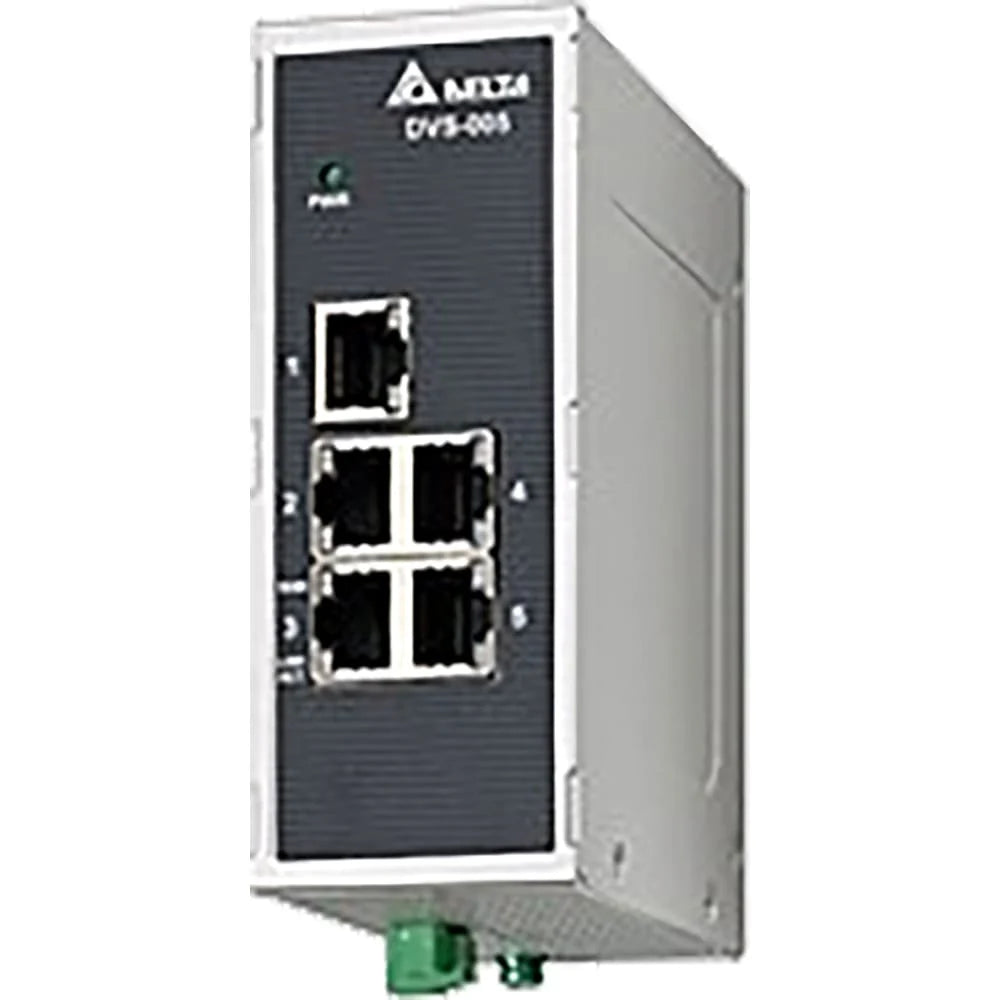

Delta | DVS Series | Unmanaged Industrial Ethernet Switch |
The Delta DVS Series are unmanaged industrial Ethernet switch designed by Delta Electronics for harsh environments. Available with 5 or 8 with 10/100Base-T(X) speeds and is commonly used in factory automation and PLC communications.
Key Specifications:
- Port Configuration: 5 RJ45 ports supporting 10/100 Mbps auto-sensing.
- Power Requirements: Operates on a wide 12 to 48 VDC terminal block power input with a maximum current of 0.24A.
- Operating Temperature: Standard rated for –10 °C to 60 °C, though some industrial variants in the DVS series can handle -40 °C to 75 °C.
- Performance: Features a 1 Gbps switching capacity and a 1.5 Mpps forwarding rate.
- Durability: Housed in a rugged casing with DIN-rail or wall mounting options.
Number of Ports
Regular price
$369.49
