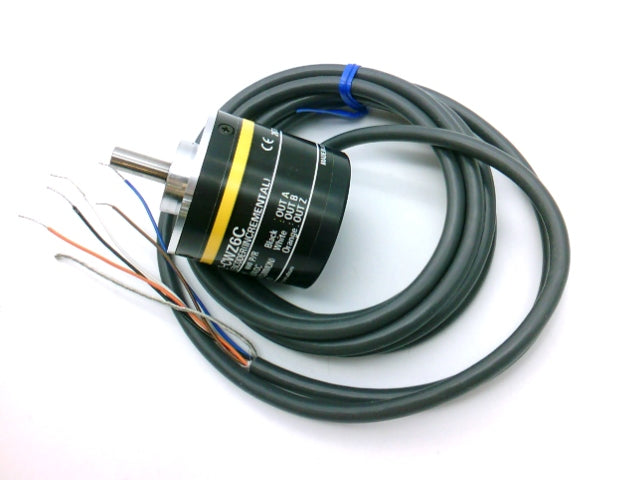

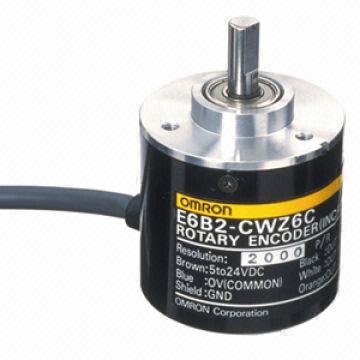

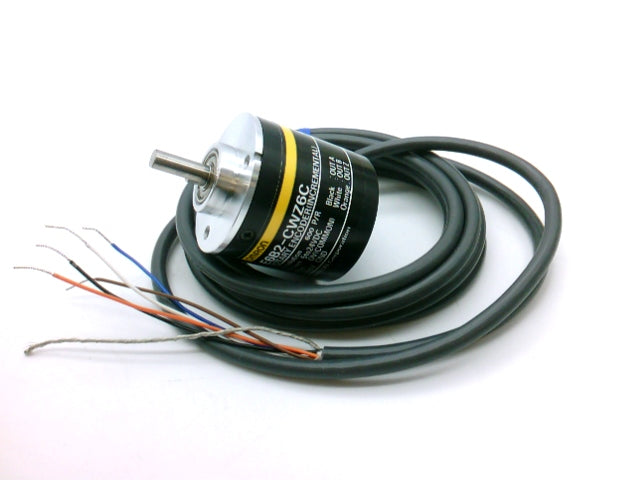

The Omron E6B2-CWZ6C is a compact incremental rotary encoder designed for precise position and speed detection in industrial automation systems. With a resolution of 600 pulses per revolution (PPR) and NPN open collector outputs for phases A, B, and Z, it offers reliable performance in various applications. The encoder features a 40 mm diameter housing and comes pre-wired with a 2-meter cable for easy installation.

Brand: Omron
Model: E6B2-CWZ6C
Type: Incremental Rotary Encoder
Resolution: 600 pulses per revolution (PPR)
Output Configuration: NPN open collector (phases A, B, Z)
Power Supply Voltage: 5 to 24 VDC (±15%)
Current Consumption: 80 mA max.
Maximum Response Frequency: 100 kHz
Shaft Diameter: 6 mm
Housing Diameter: 40 mm
Cable Length: 2 meters (pre-wired)
Maximum Rotational Speed: 6,000 RPM
Operating Temperature Range: -10°C to +70°C (no icing)
Protection Rating: IP50
Materials:

• Case: ABS

• Main Unit: Aluminum

• Shaft: SUS420J2
  Weight: Approximately 100 g
  Suitable for: Industrial automation, motor feedback, conveyor systems, and other applications requiring accurate rotational position sensing.

The E6B2-CWZ6C's robust construction and high-resolution output make it an excellent choice for demanding industrial environments.
