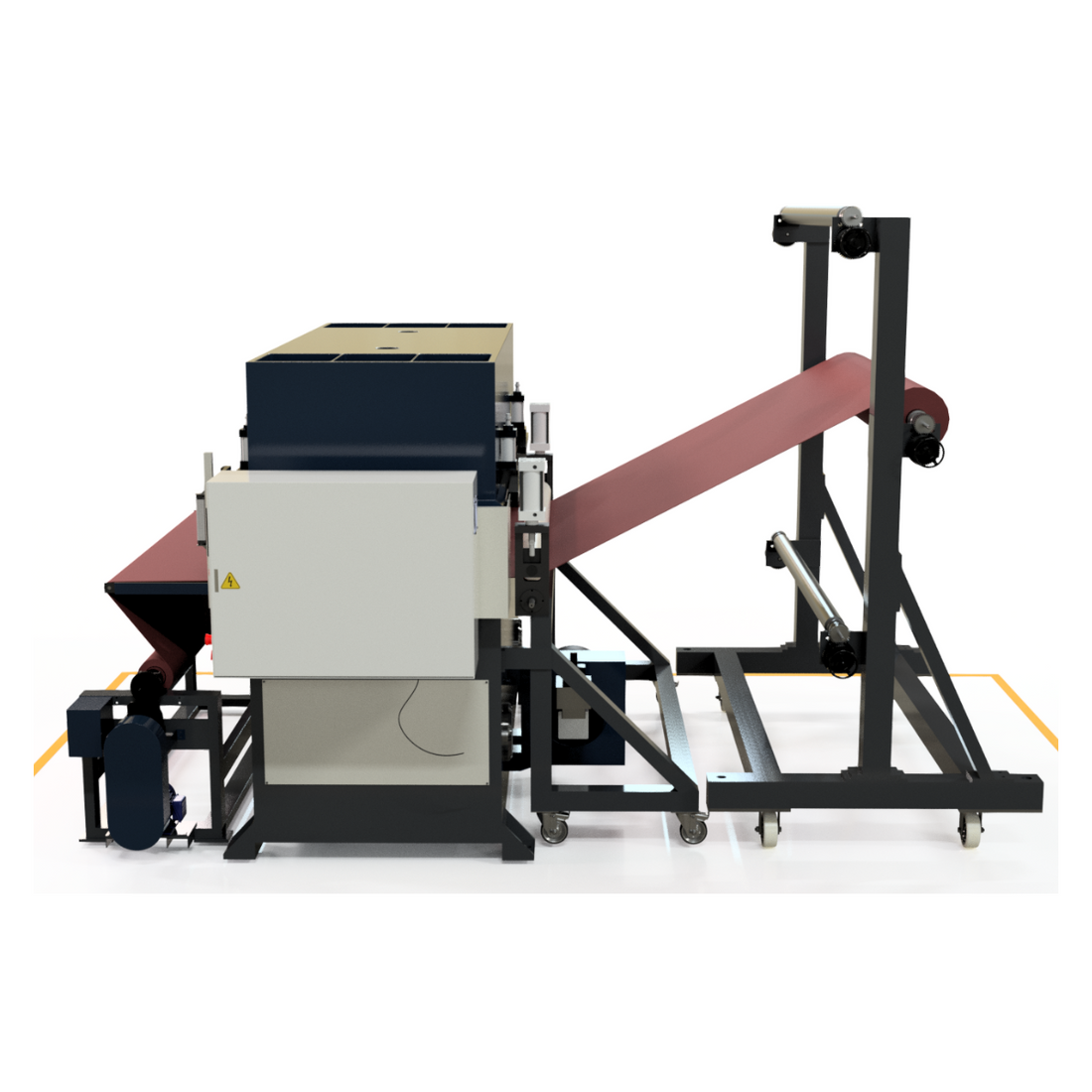

HydroBeam Pinch-Roll Full Beam Press

Hydraulic Full Beam Press w/ PLC-based Pinch Roller Automation Package

The HydroBeam Full Beam Press is our best solution for large format die cutting operations. With cutting tables up to 72" wide and 60" deep, it is a favorite among fabric, leather, gasket, automotive, and aerospace manufacturers. We’ve combined a twin-cylinder hydraulic system with our Equalink deflection management system to produce high repeatability and cutting accuracies up to ±0.01".

This model is equipped with a pinch-roll feeding system. Feed your material through pinch rollers on the back of the machine and incrementally feed and cut according to set parameters. This model may require use of a waste material rewinder for thinner materials to maintain tension.

• 10" HMI touch screen
• Encoder-based depth setting (Macro-adjustment)
• Timer-based cutting depth (Micro-adjustment)
• Compression counter & hour counter
• JIC hydraulic fittings
• Safety light curtains & caging
• Recipe-saving technology
• Two handle/button operation with anti-tiedown and anti-double-click functionality
• Soft starter to balance startup amperage & increase energy efficiency
• Thermal overload protection
• Phase monitoring & over-voltage protection

• NRTL Intertek machine certification
• UL 508(a) electrical panel certification
• 3 Year Extended Warranty
• Dwell under pressure functionality
• Allen Bradley Swap

+ Upper Heated Platen (0-400° F)
+ Pick-and-Place
+ Blanking Screws
