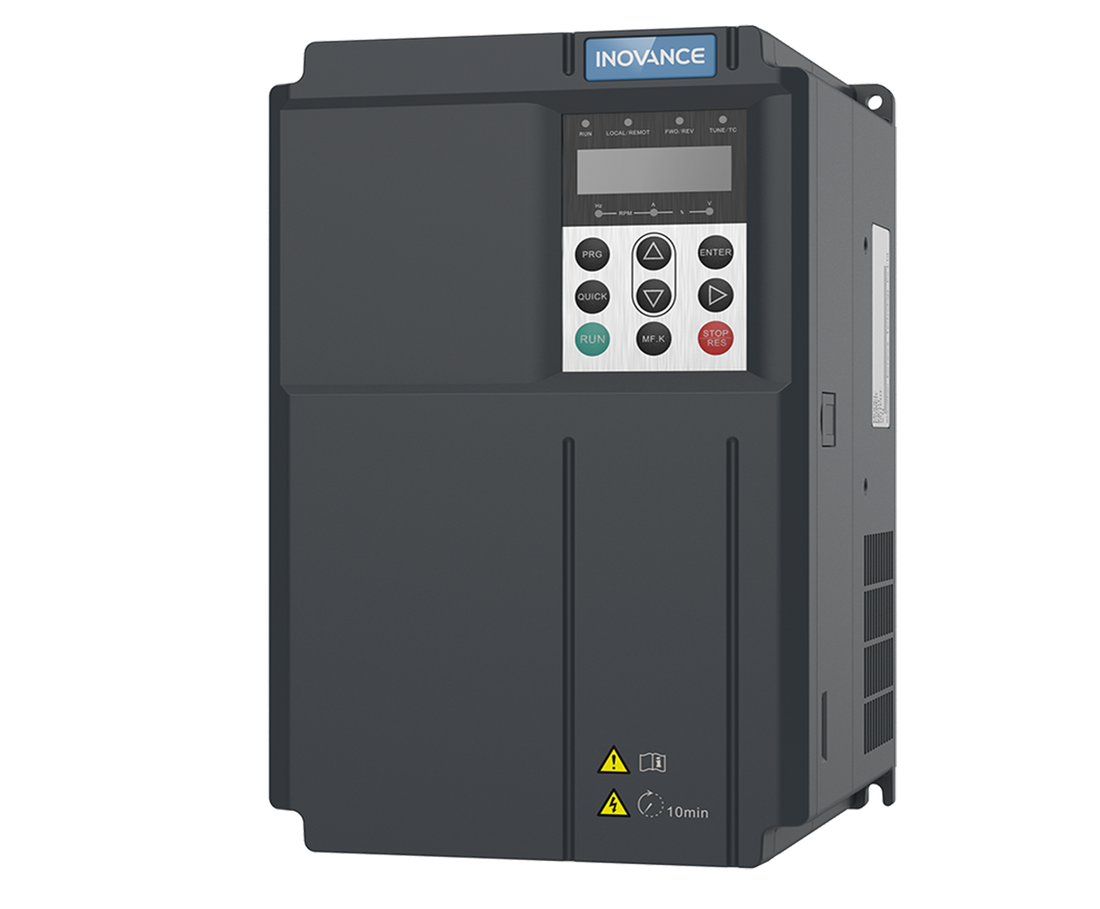

The ES510T025-1is a high-performance 11 kW hydraulic servo drive manufactured by Inovance Technology. It is specifically designed for the vector control of permanent magnet synchronous motors (PMSM) used in industrial applications like injection molding machines

Key Specifications

• Rated Power: 11 kW.
• Voltage Class: Three-phase 380 VAC to 480 VAC.
• Rated Input Current: 30.2 A.
• Control Method: High-performance vector control (FVC).
• Dimensions: Approximately 350 mm x 210 mm x 192 mm.
