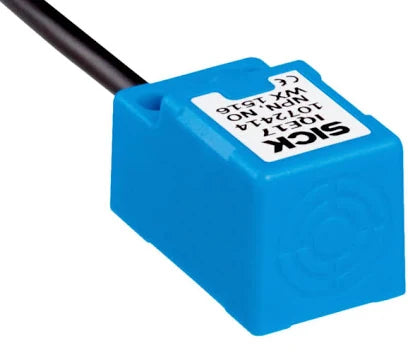

IQE17-05NPSKW2S | Proximity Switch |SICK |1069411
The SICK IQE17-05NPSKW2S (Part No. 1069411) is an inductive proximity sensor used for non-contact detection of metallic objects. It is designed for industrial automation tasks like counting, positioning, and monitoring in machinery such as packaging lines and injection molding machines.
Specifications
- Sensing Range: 5 mm nominal sensing distance with a safe sensing range of 4.05 mm.
- Output Type: PNP switching output with a Normally Open (NO) function.
- Electrical Configuration: DC 3-wire system with a supply voltage of 10 V to 30 V DC.
- Switching Frequency: High speed of up to 1,000 Hz, allowing for fast-moving handling processes.
- Connection: Pre-wired with a 2-meter, 3-wire PVC cable
