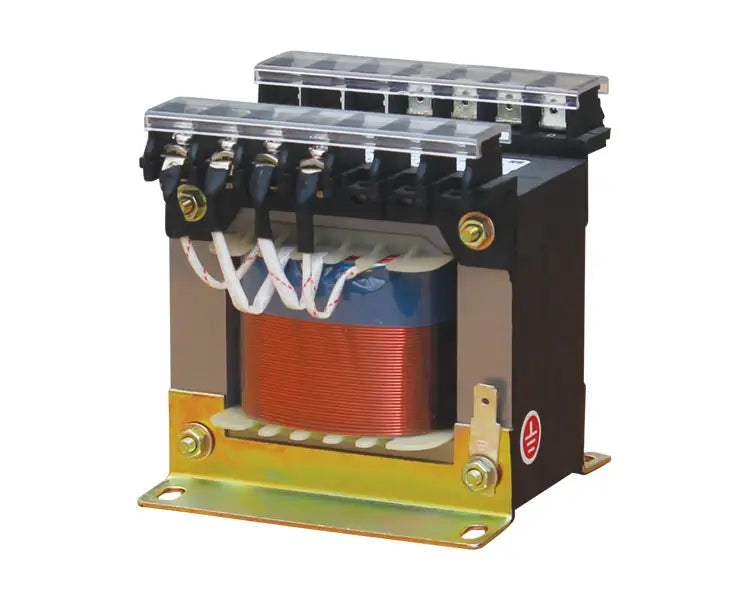

JBK3-160VA Machine Tool Control Transformer | 50/60Hz

The JBK3-160VA is an industrial control transformer used to step down machine supply voltage to safe control-circuit voltages for contactors, relays, indicator lamps, and low-voltage work lighting. This is the standard control transformer fitted to swing arm clicker presses and similar industrial machine tools, and is a direct replacement for the JBK3-160VA units installed in Hammerhead Industrial presses.

Specifications

• Model: JBK3-160VA
• Capacity: 160VA
• Frequency: 50/60Hz
• Type: Isolation-style machine tool control transformer (JBK3 series)
• Construction: Copper-wound, screw-terminal connections with protective terminal covers
• Insulation class: T40/E, with resettable 5A/115°C thermal protection (varies by production run)
• Compliance: CE marked; manufactured to GB 19212.3 / IEC 61558-1
• Note: Sold by specification. Units are sourced from qualified OEM manufacturers and may arrive under different labels or unbranded. Electrical specs, dimensions, and performance are identical across all suppliers.

Select your configuration

Primary (Input) Voltage:

• 220V — for machines wired to a 220V single-phase supply or 220V line-to-line

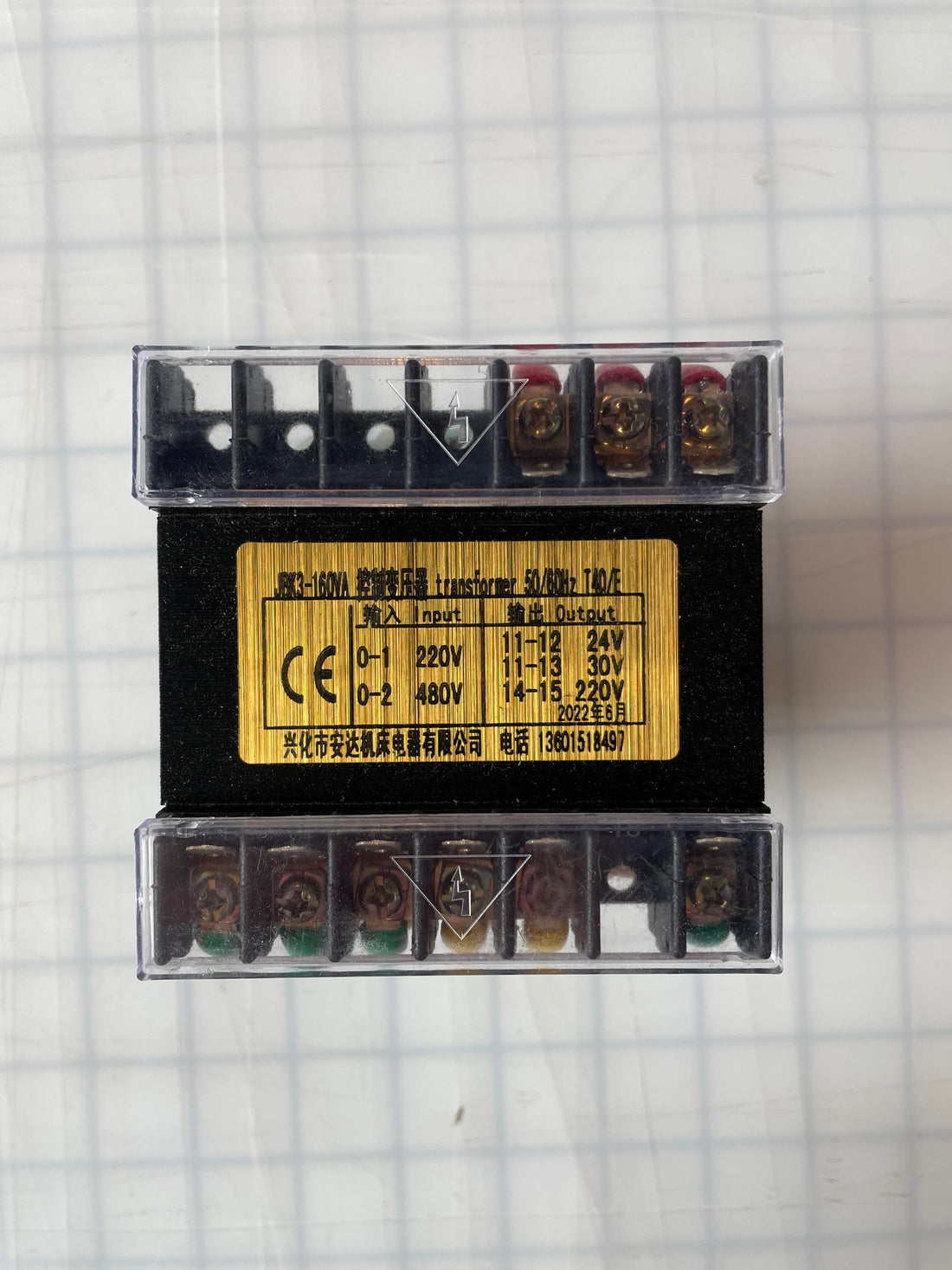

• 220/480V — dual-tap primary; accepts either 220V or 480V input, for machines running on 480V three-phase supplies (common in US industrial installations)

Secondary (Output) Voltage:

• 24V — single 24V control output
• 24/30V/220V — multi-tap secondary providing 24V, 30V, and 220V outputs from separate terminal pairs, supporting control circuits, clutch/brake circuits, and 220V auxiliary loads on the same transformer

Application notes

• Match the primary voltage to your incoming machine supply before ordering. Connecting a 220V-only primary to a 480V supply will destroy the transformer.

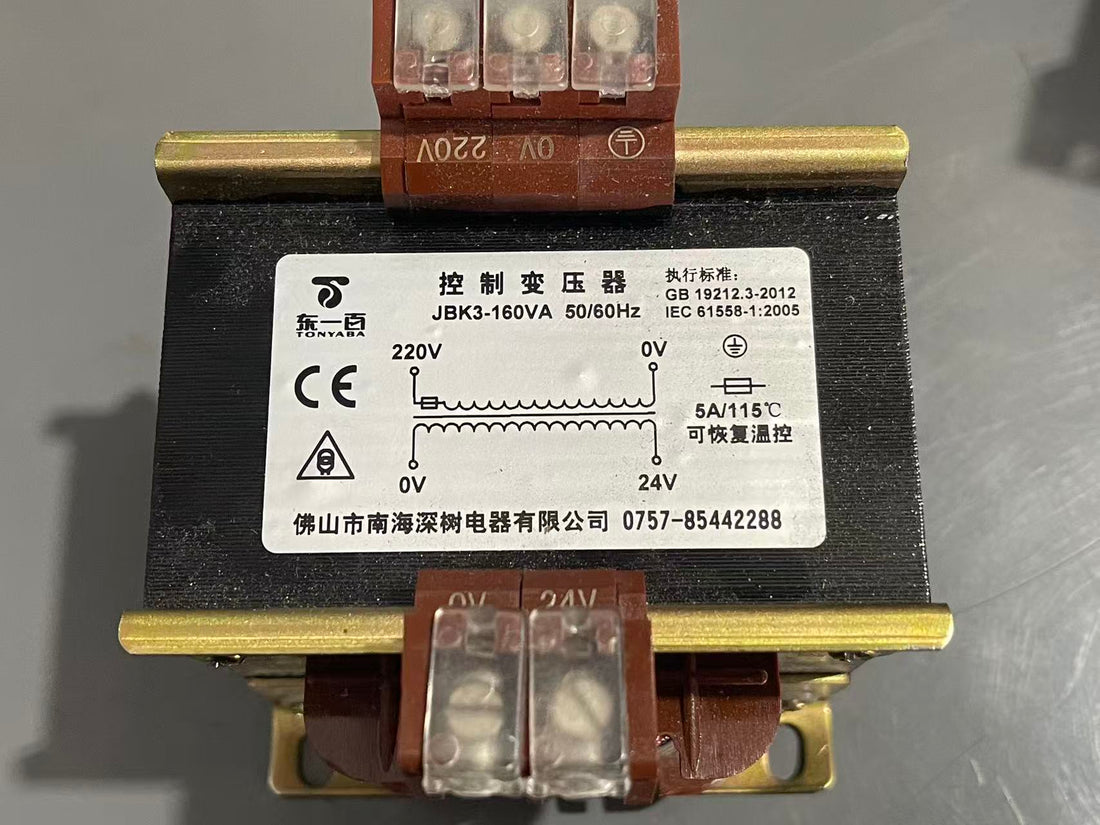

• Terminal numbering may vary slightly between production batches, but tap voltages are printed directly on each unit's nameplate and terminal blocks.
• Suitable as a replacement part for clicker presses, punching machines, and general machine tool control cabinets using the JBK3 form factor.

Questions about which configuration matches your machine? Contact Hammerhead Industrial with your machine model or a photo of your existing transformer's nameplate and we'll confirm the correct variant.
