Limit Switch | D4V-8112Z | Omron |

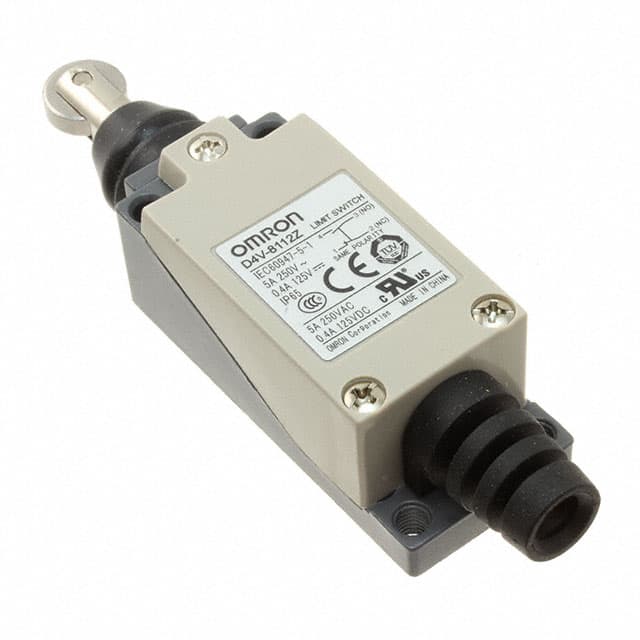

The Omron D4V-8112Z is a compact vertical limit switch featuring a roller plunger actuator, designed for space-constrained industrial automation applications. It is known for its durable design and ease of wiring due to its fully openable terminal section.
Key Specifications:
- Actuator Type: Stainless steel roller plunger.
- Contact Form: SPDT (Single Pole Double Throw).
- Current Rating: 5A at 250VAC (resistive load).
- Voltage Ratings: Up to 250VAC and 250VDC.
- Ingress Protection: IP65 (dust-tight and water-resistant).
- Operating Characteristics:
-
- Operating Force (OF): Max 9.8N (approx. 1000gf).
- Pretravel (PT): Max 1.5mm.
- Overtravel (OT): Min 4mm.
- Mechanical Life: Minimum 10,000,000 operations.
- Operating Temperature: -20°C to 60°C (with no icing).
Regular price
$33.10
