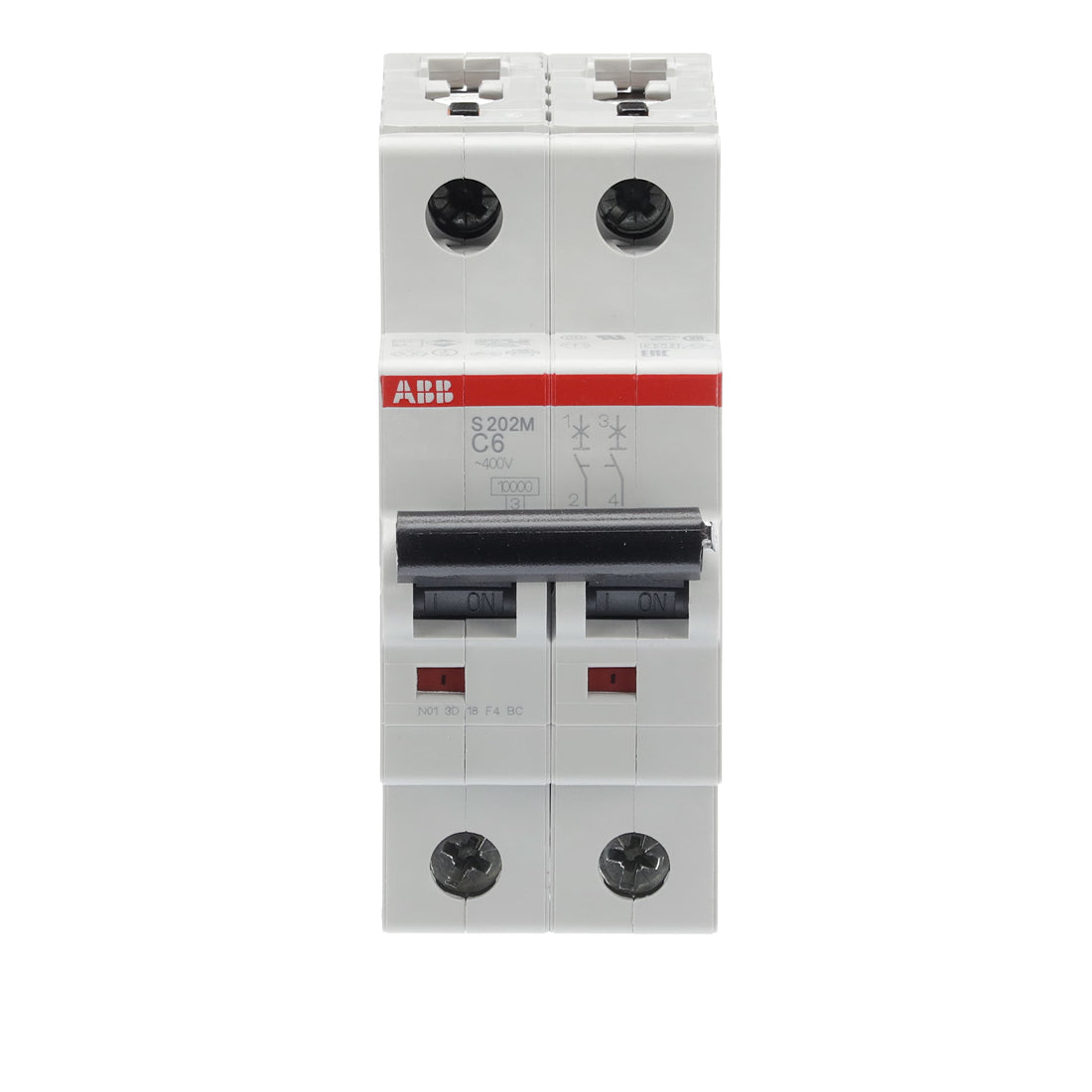

Miniature Circuit Breaker | S202M-C6 | 2-Pole | ABB
The ABB S202M-C6 is a 2-pole miniature circuit breaker (MCB) from the System pro M compact S200M series. It is designed to provide overcurrent protection for electrical circuits in residential, commercial, and industrial applications
Technical Specifications
- Rated Current: 6 Amps.
- Number of Poles: 2 (Double Pole).
- Tripping Characteristic: C-curve (suitable for inductive loads with moderate inrush currents, like small motors or fluorescent lighting).
- Breaking Capacity: Up to 10 kA at 230/400 V AC.
- Voltage Rating: 400 V AC (Phase-to-phase) and up to 125 V DC (2 poles in series).
- Mounting: Standard 35mm DIN rail mounting.
- Dimensions: 35 mm width (2 modules), 88 mm height, and 69 mm depth.
- Standards: Complies with IEC/EN 60898-1, IEC/EN 60947-2, UL 1077, and CSA 22.2 No. 235.
Regular price
$75.67
