NEW - 20 Ton Swing Arm Clicker Press, Manual | Pivot Series PT-20 (Arriving Soon)
HAMMERHEAD INDUSTRIAL · PT-20-H-M STOCK BATCH
A brand-new Hammerhead PT-20 swing arm clicker press in the manual configuration: PCB logic, down-stroking, single cylinder, with a hydraulic-assisted crank for daylight adjustment and return-to-height. These are stock units in production for Hammerhead Industrial.
Highlights
- Brand new Hammerhead PT-20 machine (PT-20-H-M, hydraulic power package, manual configuration)
- Cutting force: 20 US tons (178 kN, approx. 18.1 metric t)
- Cutting table: 35.25 in x 16.25 in; head width 14.5 in
- Two-handle/button operation with anti-tiedown logic and timer-based cutting depth
- Serial numbers: 1-0001534, 1-0001535
- Electrical: 3-phase, 220 V, 60 Hz
- Safety: design informed by OSHA and ANSI standards
- Arriving soon: Estimated arrival at our Payson, Utah facility: late December 2026. After it arrives and passes our in-house QC, it typically ships to you in about 7–10 days. Quantity: 2
Click Contact us to buy and our sales team will confirm the specification, options, price and delivery date in writing.

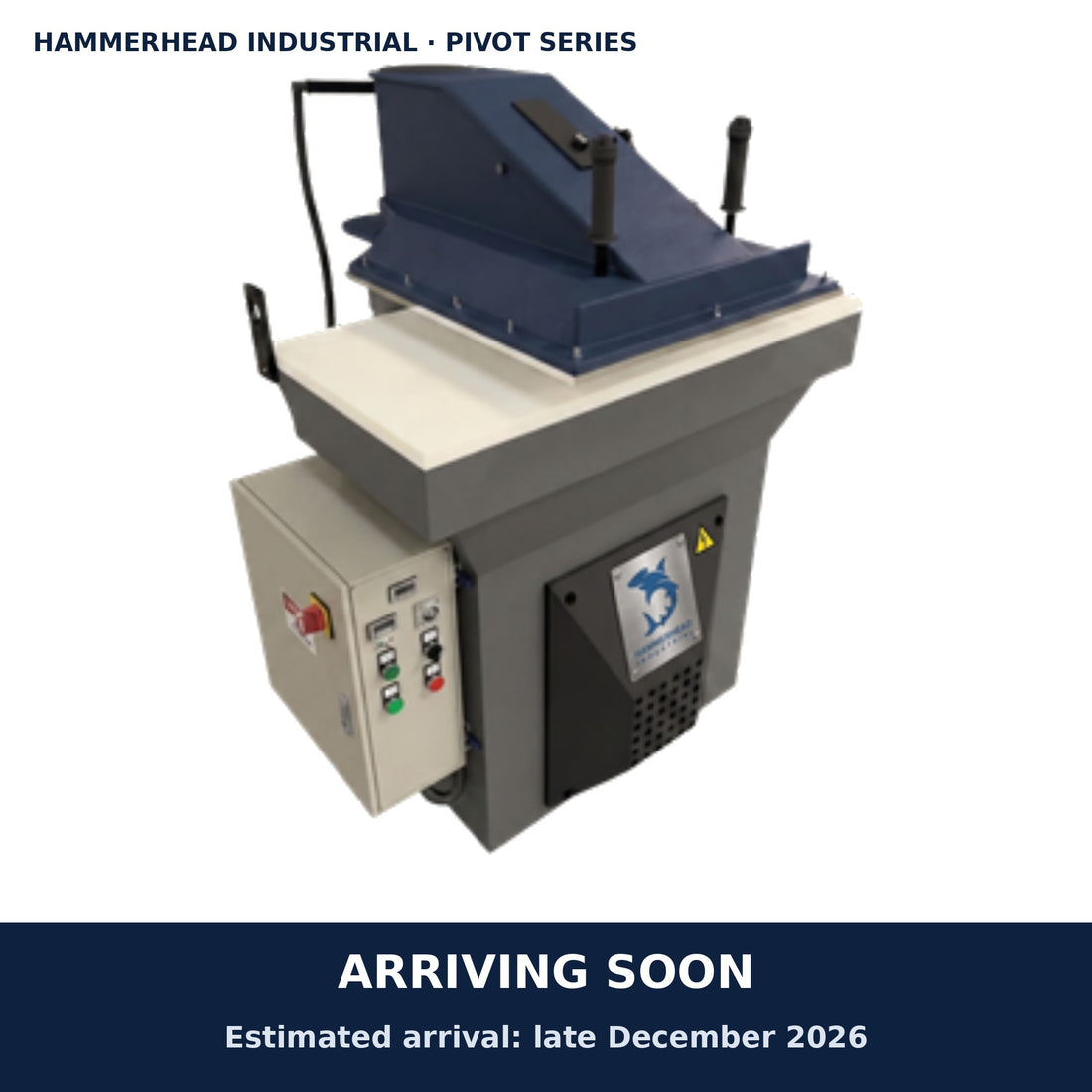

Image is from the manufacturer catalog for illustration only. The actual machine, color and options may differ. Arrival dates are estimates, not guarantees; our sales team will confirm the date in writing with your quote.
Servo-driven hydraulics & key systems
Capacity & frame
| Cutting force | 20 US tons (178 kN, approx. 18.1 metric t) |
|---|---|
| Frame | Swing arm, single cylinder, down-stroking |
| Cutting table (W x D) | 35.25 in x 16.25 in |
| Head width | 14.5 in |
| Daylight | 5 in |
| Stroke adjustment | 1.5 in - 5 in |
| Stroke speed | ~5 in/s |
Axes & control
Hydraulics & speeds
| Drive | Hydraulic [H], 1.1 kW (1.5 hp) motor |
|---|---|
| Fittings | JIC / BSPP / BSPT |
| Oil capacity | ~7 gal (ISO AW46 or equivalent) |
Dimensions
| Base unit dimensions (W x D x H) | 39 in x 36 in x 53 in |
|---|---|
| Weight (base unit) | 2,000 lb |
Standard equipment
Electrical & custom options
Incoming stock units are built 3-phase, 220 V, 60 Hz (minimum 20 A circuit). Contact us for other voltages.
$10,999.00
No online checkout for this machine. Arriving soon at our Payson, Utah facility.
