NEW - Energy Mission 50 Ton x 2000mm 4-Axis CNC Press Brake | Splendid Series EM CNC PBS 520
ENERGY MISSION · SPLENDID SERIES
This brand-new Energy Mission Splendid Series 4-axis CNC press brake (model EM CNC PBS 520) comes with a Cybelec CybTouch 12 PS control. It is a single machine, arriving soon at Hammerhead Industrial's facility in Payson, Utah.
Highlights
- Brand new Energy Mission Splendid Series machine
- Servo-driven hydraulic power pack (7 kW)
- Full CNC, 4 axes: Y1, Y2, X and R
- Cybelec CybTouch 12 PS controller (Switzerland), with a 12" touchscreen and 2D graphical programming
- Heavy-duty construction: frame of UT-tested IS 2062 steel plate, front-cylinder design, linear-scale Y1/Y2 measurement
- In stock, arriving soon at our Payson, Utah facility. Quantity: 1
Servo-driven hydraulics & key systems
How it works. On the Splendid Series, a servo motor drives the hydraulic pump. The pump runs at variable speed and builds pressure only when the ram needs it, instead of running a fixed-speed motor all the time. Servo/proportional valves from HAWE or Atos control each side of the ram (Y1 and Y2), and linear scales on both sides measure ram position so the CNC can keep the two cylinders in sync.
- Energy savings: Energy Mission rates the servo package at about 40% energy saving, and up to 40–45% lower power use than conventional hydraulics.
- Low noise: quiet, smooth operation, because the pump isn't running at full speed between strokes.
- Less oil heat: stable oil temperature, which Energy Mission notes helps keep bend accuracy consistent through a shift.
- Speed: high-speed beam moves with less power: 160 mm/s approach and return, 10 mm/s pressing.
- Accuracy: linear-scale Y1/Y2 sync, ball-screw backgauge on LM guides, and quick-release clamps with taper wedges for local angle adjustment.
- Cybelec control: the CybTouch 12 PS calculates bend allowance, punch depth and crowning pressure, and generates bend sequences automatically.
Charts from Energy Mission. Splendid is shown in blue.
Capacity & frame
| Capacity | 50 metric tons (approx. 55 US tons) |
|---|---|
| Bending length | 2,000 mm (78.7") |
| Bending capacity, mild steel | 3 mm x 2,000 mm (approx. 1/8" x 78") |
| Table width x length | 90 x 2,000 mm (3.5" x 78.7") |
| Table height | 850 mm (33.5") |
| Distance between housings | 1,500 mm (59") |
| Throat depth | 250 mm (9.8") |
| Ram stroke | 200 mm (7.9") |
| Open height | 385 mm (15.2") |
| Close height | 185 mm (7.3") |
| Frame plate | IS 2062 steel, ultrasonically tested |
Axes & control
| CNC axes | 4: Y1, Y2, X, R |
|---|---|
| Control | Cybelec CybTouch 12 PS (Switzerland) |
| X-axis travel | 400 mm (15.7"), AC servo, ball screw on LM guides |
| R-axis travel | 200 mm (7.9"), AC servo, ball screw on LM guides |
| Y1/Y2 measurement | Linear scales (Fagor / GIVI) |
- 12" color touchscreen with LED backlight
- 2D graphic part programming and automatic bend sequencing
- Memory: 100 punches, 100 dies, 300 programs, 24 sequences per program
- Bend allowance, punch depth, and pressure/crowning calculation
- Angle and backgauge correction; Auto, Inch and Single Cycle modes
Hydraulics & speeds
| Power pack | 7 kW servo motor driven pump |
|---|---|
| Y1/Y2 valves | Servo/proportional hydraulics: HAWE (Germany) / Atos (Italy) / Rexroth |
| Approach speed | 160 mm/s (6.3 in/s) |
| Pressing speed | 10 mm/s (0.39 in/s) |
| Return speed | 160 mm/s (6.3 in/s) |
| Oil tank | 170 L (approx. 45 gal) |
| Oil | ISO VG 68 hydraulic oil (not supplied) |
Dimensions
| Length | 2,400 mm (94.5") |
|---|---|
| Width | 1,090 mm (42.9") |
| Height | 2,200 mm (86.6") |
| Weight | Contact us |
Standard equipment
- Servo drive motor for the hydraulic power pack
- Front cylinder design
- Linear-scale Y1/Y2 measurement
- CNC X + R backgauge with ball screws, drive unit, rotary encoder and LM guides
- 4 wheel-type backgauge fingers
- Quick-release lever clamps with taper wedges for localized angle adjustment
- 2 sliding front sheet supports on LM guides
- Laser safety (DSP)
- Rear and side covers
- Pair of foot switches (Schmersal)
- Hardened and ground self-centering 4-V die (16/22/35/50 mm)
- P.125 semi-gooseneck punch
Electrical & custom options
Contact us for this machine's electrical configuration (voltage, phase and frequency).
Switchgear and contactors: C&S / Schneider. Component makes are per Energy Mission and may change with availability.
NRTL certification and UL-listed electrical panels are not standard. They can be requested and are reviewed case by case.
$92,980.00
No online checkout for this machine. Arriving soon at our Payson, Utah facility.
- Based in Payson, UtahOur machines are delivered and supported from our Utah facility
- Parts & serviceIn-stock parts and a US service team
- On-site supportOur technicians travel to your plant
- 525 machines in the fieldCustomers in 49 states and 4 Canadian provinces
Forta Pro, Forta Core and Servo-Electric press brakes, ShearFang shears, IronFin ironworkers and HammerFold panel benders.
View all metalworking machineryFrom the Shop
News, builds and project highlights
Recent machines out the door, custom builds, and notes from our Payson, Utah shop.

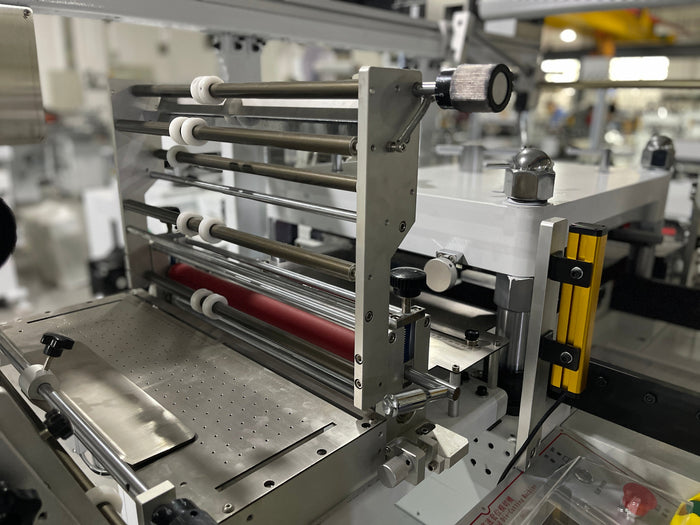

The Best of Both Worlds: High-Quality Die Cutting Machines at Competitive Prices
In today’s competitive manufacturing environment, finding industrial machinery that balances quality and cost can feel like an impossible...
Read →

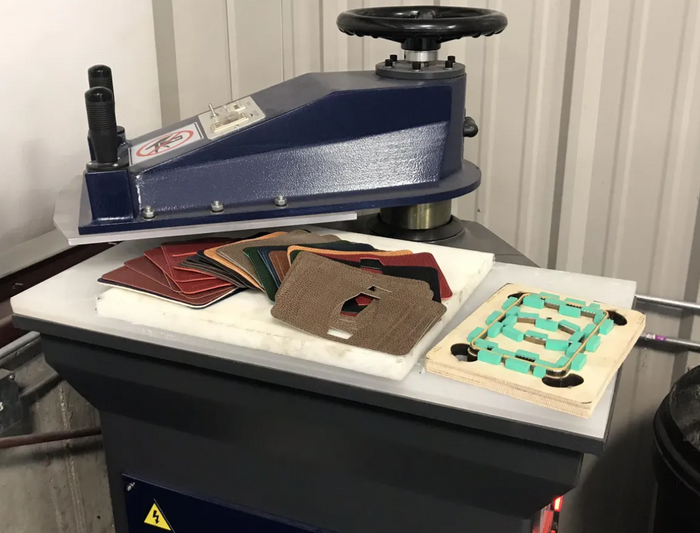

Competitive Benefits of Die Cutting
Die cutting provides consistent quality cuts every time, reducing the risk of defects and improving the overall quality...
Read →

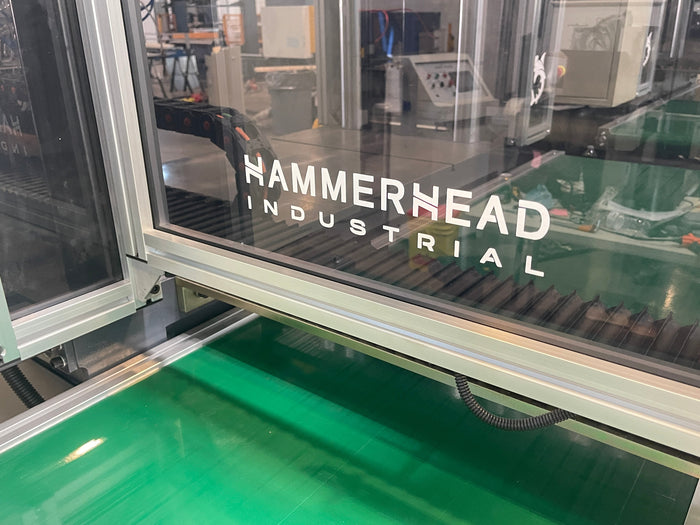

American Clicker Press Co" Becomes "Hammerhead Industrial": A Practical Shift for Future Growth
