Refurbished 10 Ton Swing Arm Clicker Press

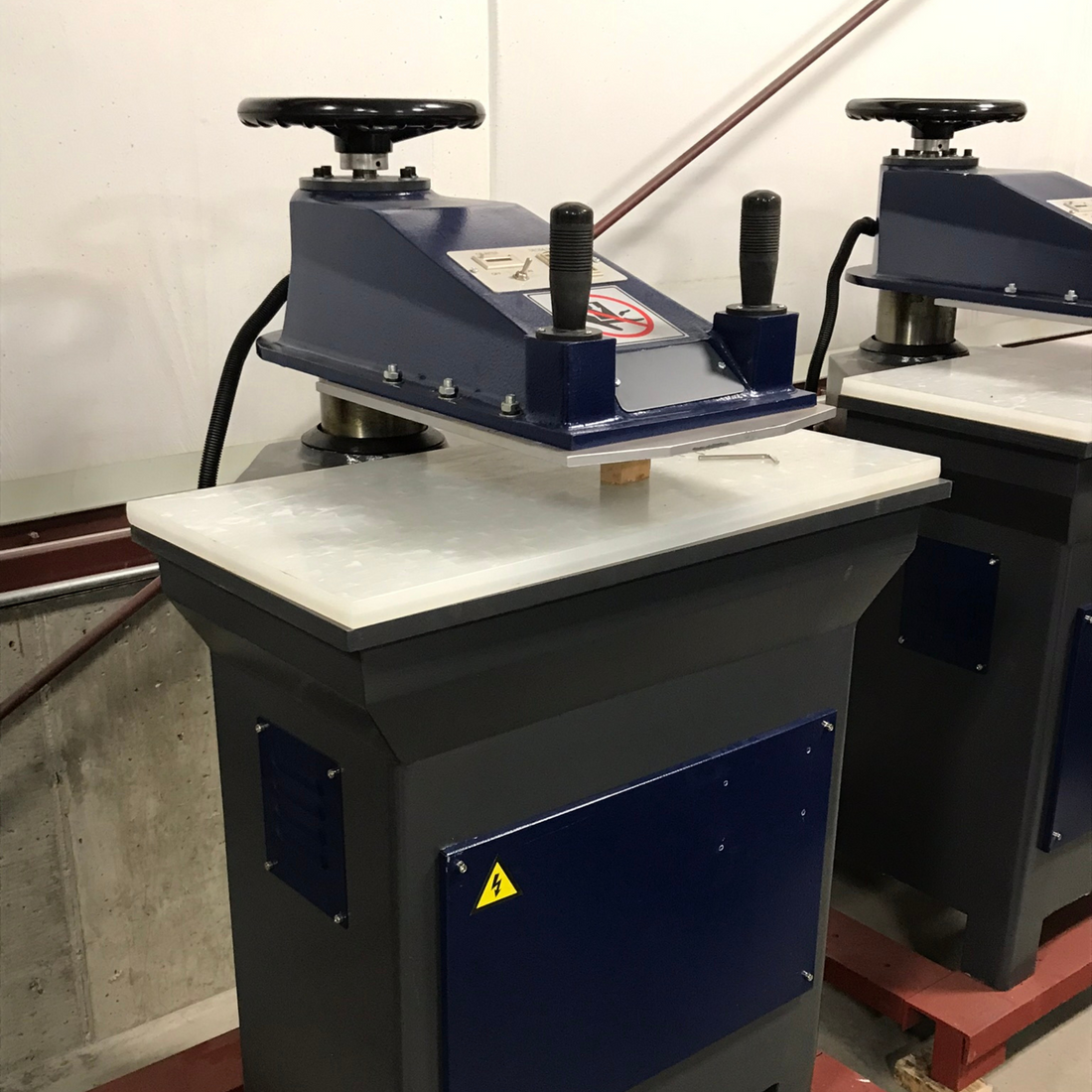

REFURBISHED IN-STOCK: GEN 2 HAMMERHEAD 10 TON SWING ARM CLICKER PRESS
*Refurbished machines may have sustained cosmetic or other easily repairable damage and have been returned to like-new condition.
Model # HH-SA-10-A
Machine Dimensions (W:D) 31.25" x 30.5"
Shipping Dimensions (W:D:H) 41" x 41" x 65"
Head Size (W:D) 13.75” x 17.5”
Table Size (W:D) 31.5” x 15.75”
Max Die Dimensions 13.75” x 15.75”
Gross Crated Weight 950 LBS
Tonnage 10
Daylight 4.75”
Stroke Adjustment 1.5” - 4.75”
Stroke Speed 3.94 in/s
Oil Capacity ~10 gallons
Cutting Pad 1” Thick Polypropylene
Machine Power: 3 Phase, 220V, 60HZ
Amperage 7.5A
Motor Power: 0.75kW (1hp)
$6,599.00
Not sure which configuration fits?
Tell us your material, part size and volumes. We will match the tonnage, cutting area and automation to the job, with upfront pricing.
- QC'd in Payson, Utah
- Warranty, parts & service
- Technicians travel to your plant
